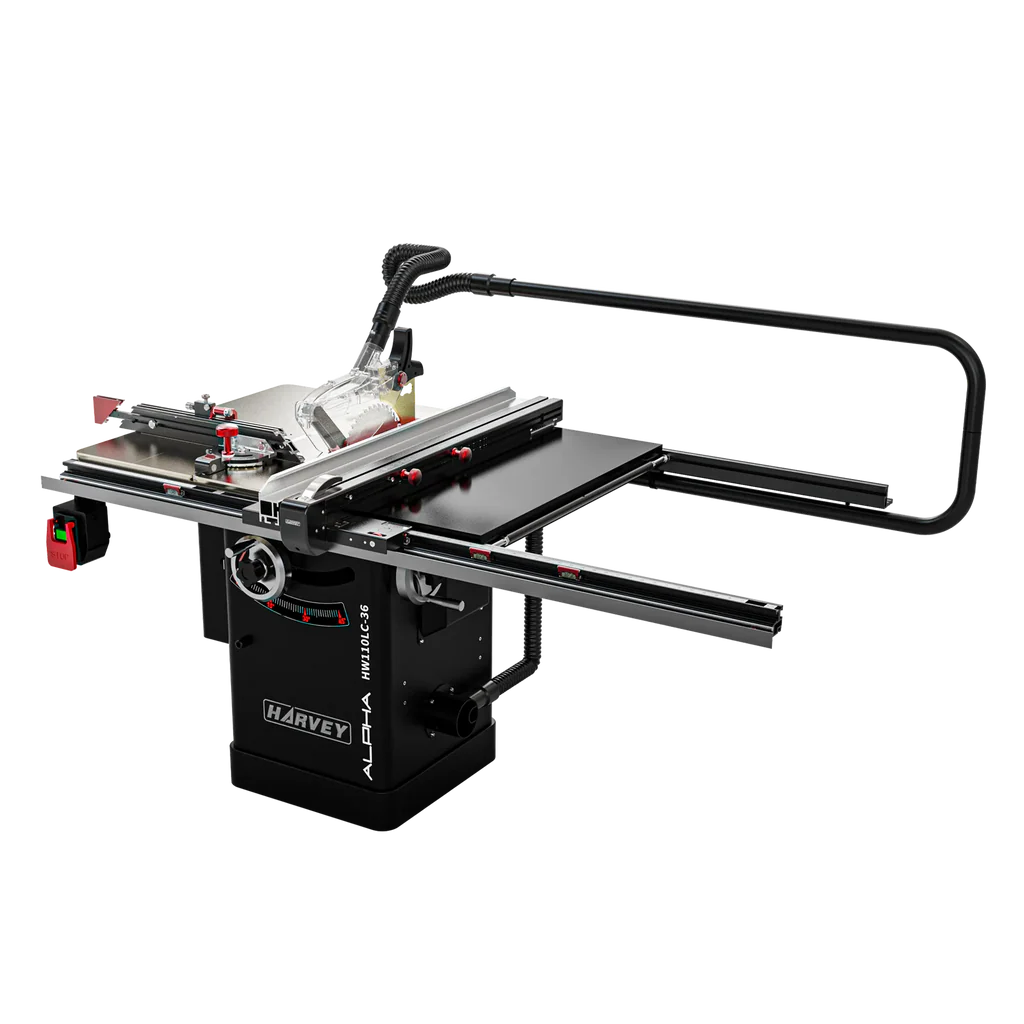

ALPHA HW110LC-36Pro 10" 2HP Stain-less Cabinet Saw with Big Eye Rip Fence

ALPHA HW110LC-36Pro 10" 2HP Stain-less Cabinet Saw with Big Eye Rip Fence

by Alpha
£4,000.00

Notify me when back in stock

Crafted to the highest standards of quality, the ALPHA Series HW110LC-36Pro Stain-less Cabinet Saws are not merely tools but an investment in your craft. Whether you are a seasoned professional or setting up your first woodworking shop, these saws offer the reliability and performance necessary to elevate your woodworking projects to new heights.

Features and Benefits

*Unprecedented Big Eye Rip Fence System

*Extraordinary Nickel-plated Cast Iron Table

*Unique Nickel-plated Worm Gear Trunnion System

*MG-36Pro "COMPASS" Miter Gauge

*Industrial-grade DESTROYER General Purpose Blade

*The Versatile Fence Positions

*Special Transparent Blade Guard with Optimized Protection and Dust Control

*Dust Shroud Under Blade

*Built-in Dust Collection Hose System

*Magnetic Safety Switch

Product Dimensions

Net Weight: 400 lb | 181.5 kg

Length: 69-5/16" | 1760mm

Width: 41-5/16" | 1050mm

Height: 48-5/16" | 1225mm

Base Dimensions (Footprint): 20-1/4" x 19-5/8" | 514mm x 498mm

Motor

Horsepower: 2HP | 1.65kW

Electric Phase: 1Ph | 1Ph

Voltage: 115V/230V | 220V (Europe/Asia)

Current: 16A/8A Full-Load | 10A (Europe/Asia)

Full-Load Frequency: 60Hz | 50Hz

Motor Type: TEFC Capacitor Start Induction | TEFC Industrial Grade

Motor Speed: 3500 RPM | 2900 RPM

Arbor Speed: 3850 RPM | 3850 RPM

Circuit Breaker Required: 20A with RCD Module | 20A with RCD Module

Power Transfer: V-Ribbed Belt Drive | V-Ribbed Belt Drive

Blade Information

Maximum Blade Diameter: 10" | 254mm

Arbor Diameter: 5/8" (15.875mm) North America | 30mm Europe | 15.875mm Asia

Available Blade Plate Thickness: 0.071"-0.094" | 1.8-2.4mm

Available Blade Kerf Thickness: 0.102"-0.126" | 2.6-3.2mm

Riving Knife Thickness: 0.1" | 2.5mm

Maximum Dado Width: 13/16" | 20.6mm

Blade Tilt Range: 0-45° Left | 0-45° Left

Included Blade: 10" DESTROYER 40T General Purpose | 254mm DESTROYER 40T

Cutting Capacities

Maximum Depth of Cut at 90°: 3-1/8" | 79.4mm

Maximum Depth of Cut at 45°: 2-3/16" | 55.5mm

Maximum Rip, Right of Blade: 36" | 915mm

Maximum Rip, Left of Blade: 9" | 228mm

Blade Elevation: Hand Wheel Controlled | Hand Wheel Controlled

Blade Tilt: Hand Wheel Controlled 0-45° | Hand Wheel Controlled 0-45°

Table Information

Table Size: 31.49" x 22.44" | 800mm x 570mm

Table Thickness: 1.83" | 46.5mm

Table Height from Ground: 34" | 867mm

Distance from Front Edge to Blade Center: 18.9" | 480mm

Table Material: Nickel-Plated Precision Ground Cast Iron | Nickel-Plated Cast Iron

Table Finish: Powder Coated with Nickel Plating | Powder Coated with Nickel Plating

Extension Wing: Left Cast Iron Extension Wing | Left Cast Iron Extension Wing

Fence System

Fence Type: Big Eye Rip Fence System T-Square | Big Eye Rip Fence System T-Square

Fence Size: 3-7/16" x 2" | 87mm x 50mm

Fence Accuracy: Synchronized dual-end locking mechanism | Synchronized dual-end locking mechanism

Linear Guide System: Dual-axis with 8 Bearing Rollers | Dual-axis with 8 Bearing Rollers

Scale Viewer: K9 Crystal Glass Window | K9 Crystal Glass Window

Position Stops: 4 Built-in Flip Position Stops | 4 Built-in Flip Position Stops

Micro-adjustment: Micro-adjustment Knob Included | Micro-adjustment Knob Included

Miter Gauge Information

Miter Gauge Model: COMPASS MG-36Pro | COMPASS MG-36Pro

Miter Gauge Slot Type: T-Shape | T-Shape

Miter Gauge Size: 3/4" x 3/8" | 19.05mm x 9.5mm

Angle Accuracy: 0.1 degree | 0.1 degree

Material: T-6 Aircraft-grade Aluminum Alloy | T-6 Aircraft-grade Aluminum

Quick-Action Angles: ±60°, ±45°, ±30°, ±22.5°, ±15°, 0° | Same

Crosscut Fence: 36" with Flip Stop | 915mm with Flip Stop

Dust Collection Information

Dual Dust Ports: Upper and Lower (4" diameter)

Required Air Flow: 470 CFM (800 m³/h) minimum

Pressure Requirements: 1100Pa pressure drop per outlet

Air Current Speed for Dry Chips: 3937 FPM (20 m/s)

Air Current Speed for Wet Chips: 5511 FPM (28 m/s) (18% water content)

Over Arm Dust Collection: Included with flexible hoses (0.6m and 1m lengths)

Dust Port Size: 4" (100mm)

Other Information

Frame Material: Steel Cabinet Construction | Steel Cabinet Construction

Blade Guard: GLIDER Aerodynamic (UL62841) / CE Version | GLIDER/CE Version

Dust Collection: Dual Ports Upper/Lower 4" | Dual Ports 100mm

Dust Collection Requirements: 470 CFM (800 m³/h) | 470 CFM (800 m³/h)

Nickel Plating Hardness: 500-700HV | 500-700HV

Safety Features: Magnetic Switch + Thermal Overload | Magnetic Switch + Thermal Overload

Assembly Status: Partial Assembly Required | Partial Assembly Required

Finishing: Powder Coated | Powder Coated

Delivery Method: Freight on Pallet | Freight on Pallet

Standards Compliance: UL62841 | CE, TÜV Rheinland



Warranty: Two Year Limited Warranty | Two Year Limited Warranty
