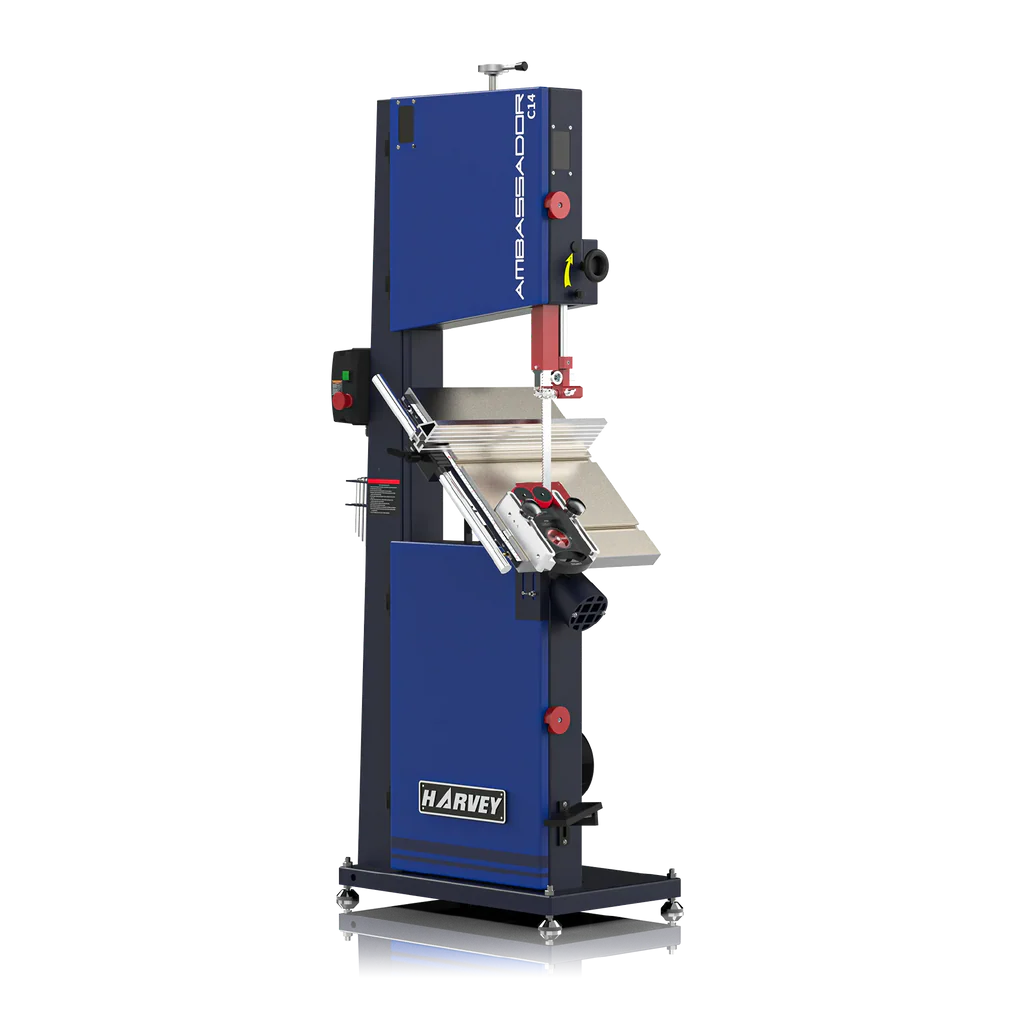

AMBASSADOR C14Pro 3HP 14" Stain-less Bandsaw

AMBASSADOR C14Pro 3HP 14" Stain-less Bandsaw

by Ambassador
£3,000.00

Notify me when back in stock

The AMBASSADOR C14Pro Stain-less Band saw features a powerful 3HP motor, 14" resaw capacity, super solid steel frame (over 150kg in weight), heavy-duty cast iron flywheels, uniquely designed Tool-less blade guides, the newly developed COMPASS RG-2 Roller Guide for your safe and enjoyable cutting; foot brake with micro switch, magnetic on/off switch, rack and pinion table tilting system, quick- release tension as well as Harvey uncompromising fine craftsmanship.

For woodworkers seeking a bandsaw that combines traditional reliability with innovative features, the AMBASSADOR C14Pro is the ultimate choice. Experience the next level of industrial-grade woodworking machinery with Harvey Industries.

Features and Benefits

* Nickel-Plated Worktable For Superior Rust and Wear Resistance

* Nickel-Plated Cast Iron Rack and Pinion Table Tilting System

*Dynamically Balanced Cast Iron Flywheels with Nickel-Plating

*Powerful 3HP TEFC Single Phase Motor (220V)

*Extraordinary 14" Resaw Capacity

*Unique Tool-Less Upper and Lower Blade Guides

*COMPASS RG-2 Roller Guide

*Foot Brake with Micro Switch

*Quick Release Tensioning Levers

Product Dimensions
Net Weight: 350 lb | 157 kg
Gross Weight (Packaged): 396 lb | 178 kg
Length: 24" | 610mm
Width: 15-3/4" | 400mm
Height: 70-3/4" | 1800mm
Base Dimensions (Footprint): 24" x 15-3/4" | 610mm x 400mm
Packing Dimensions: 29-1/2" x 19-1/2" x 75-5/8" | 749mm x 495mm x 1921mm

Motor
Horsepower: 3HP | 2.2 kW
Electric Phase: 1Ph | 1Ph
Voltage: 230V | 230V
Current: 12.8A Full-Load | 12.8A
Frequency: 60Hz | 60Hz
Motor Type: TEFC Industrial Grade | TEFC Industrial Grade
Circuit Breaker Required: 20A with RCD Module | 20A with RCD Module

Blade Information
Blade Width: 1/8" - 1" | 3-25mm
Blade Length: 125" | 3175mm
Blade Tension Range: Variable Quick Release | Variable Quick Release
Included Blade: 3/4" width | 19mm width

Cutting Capacities
Flywheel Diameter: 14" | 350mm
Maximum Cutting Height: 14" | 350mm
Throat Capacity: 13" | 330mm
Cutting Speed: 3445 FPM | 1050 m/min

Table Information
Table Size: 19-3/4" x 15-3/4" | 500mm x 400mm
Table Height from Ground: 34-1/4" | 870mm
Table Tilting Range and Angle: -15° to 45° | -15° to 45°
Table Material: Nickel-Plated Cast Iron | Nickel-Plated Cast Iron
Table Tilt System: Rack & Pinion with Gas Assist | Rack & Pinion with Gas Assist

Other Information
Frame Material: Reinforced Steel (350+ lbs) | Reinforced Steel (157+ kg)
Flywheel Material: Nickel-Plated Cast Iron | Nickel-Plated Cast Iron
Blade Guides: Ball Bearing Tool-Less | Ball Bearing Tool-Less
Dust Collection: Dual Ports (400 CFM min) | Dual Ports (680 m³/h min)
Roller Guide: COMPASS RG-2 Included | COMPASS RG-2 Included
Nickel Plating Hardness: 500-700HV | 500-700HV
Safety Features: Foot Brake + Magnetic Switch | Foot Brake + Magnetic Switch
Assembly Status: Partial Assembly Required | Partial Assembly Required
Fence System: Aluminum (1/2" & 3" heights) | Aluminum (12.5mm & 76mm heights)

Description

The AMBASSADOR C14Pro Stain-less Band saw features a powerful 3HP motor, 14" resaw capacity, super solid steel frame (over 150kg in weight), heavy-duty cast iron flywheels, uniquely designed Tool-less blade guides, the newly developed COMPASS RG-2 Roller Guide for your safe and enjoyable cutting; foot brake with micro switch, magnetic on/off switch, rack and pinion table tilting system, quick- release tension as well as Harvey uncompromising fine craftsmanship.

For woodworkers seeking a bandsaw that combines traditional reliability with innovative features, the AMBASSADOR C14Pro is the ultimate choice. Experience the next level of industrial-grade woodworking machinery with Harvey Industries.

Features and Benefits

* Nickel-Plated Worktable For Superior Rust and Wear Resistance

* Nickel-Plated Cast Iron Rack and Pinion Table Tilting System

*Dynamically Balanced Cast Iron Flywheels with Nickel-Plating

*Powerful 3HP TEFC Single Phase Motor (220V)

*Extraordinary 14" Resaw Capacity

*Unique Tool-Less Upper and Lower Blade Guides

*COMPASS RG-2 Roller Guide

*Foot Brake with Micro Switch

*Quick Release Tensioning Levers

Product Dimensions
Net Weight: 350 lb | 157 kg
Gross Weight (Packaged): 396 lb | 178 kg
Length: 24" | 610mm
Width: 15-3/4" | 400mm
Height: 70-3/4" | 1800mm
Base Dimensions (Footprint): 24" x 15-3/4" | 610mm x 400mm
Packing Dimensions: 29-1/2" x 19-1/2" x 75-5/8" | 749mm x 495mm x 1921mm

Motor
Horsepower: 3HP | 2.2 kW
Electric Phase: 1Ph | 1Ph
Voltage: 230V | 230V
Current: 12.8A Full-Load | 12.8A
Frequency: 60Hz | 60Hz
Motor Type: TEFC Industrial Grade | TEFC Industrial Grade
Circuit Breaker Required: 20A with RCD Module | 20A with RCD Module

Blade Information
Blade Width: 1/8" - 1" | 3-25mm
Blade Length: 125" | 3175mm
Blade Tension Range: Variable Quick Release | Variable Quick Release
Included Blade: 3/4" width | 19mm width

Cutting Capacities
Flywheel Diameter: 14" | 350mm
Maximum Cutting Height: 14" | 350mm
Throat Capacity: 13" | 330mm
Cutting Speed: 3445 FPM | 1050 m/min

Table Information
Table Size: 19-3/4" x 15-3/4" | 500mm x 400mm
Table Height from Ground: 34-1/4" | 870mm
Table Tilting Range and Angle: -15° to 45° | -15° to 45°
Table Material: Nickel-Plated Cast Iron | Nickel-Plated Cast Iron
Table Tilt System: Rack & Pinion with Gas Assist | Rack & Pinion with Gas Assist

Other Information
Frame Material: Reinforced Steel (350+ lbs) | Reinforced Steel (157+ kg)
Flywheel Material: Nickel-Plated Cast Iron | Nickel-Plated Cast Iron
Blade Guides: Ball Bearing Tool-Less | Ball Bearing Tool-Less
Dust Collection: Dual Ports (400 CFM min) | Dual Ports (680 m³/h min)
Roller Guide: COMPASS RG-2 Included | COMPASS RG-2 Included
Nickel Plating Hardness: 500-700HV | 500-700HV
Safety Features: Foot Brake + Magnetic Switch | Foot Brake + Magnetic Switch
Assembly Status: Partial Assembly Required | Partial Assembly Required
Fence System: Aluminum (1/2" & 3" heights) | Aluminum (12.5mm & 76mm heights)
