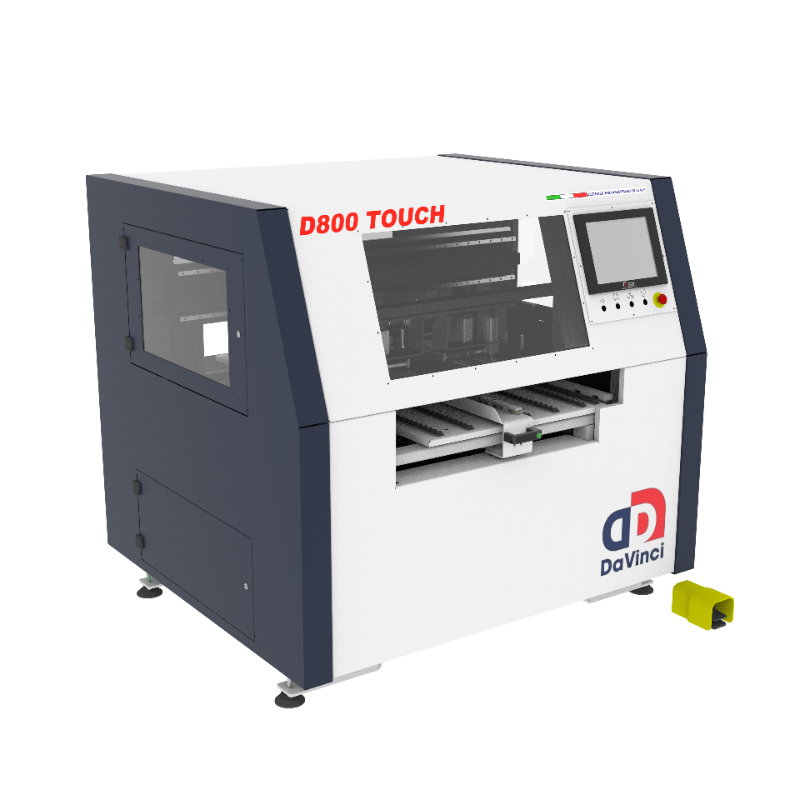

DA VINCI D 800 Touch CNC Boring System
FREE SHIPPING AND 12 MONTH MANUFACTURERS WARRANTY! No Refunds due to manufacturer assembling upon order.
Features
HEAD UNIT
Independent spindles
N.7 vertical
N.1 double horizontal -spindle TH1 (X axis) for back/ forth drilling
Manual SIDE-ALIGNER
PANEL EDGE-READER for perfect panel joints
Teleservice Software
Dust-collection nozzle
Working table with GENTLE BRUSHES to avoid storage of dust and shavings.
Working process can be in a cycle or back to the operator
HARDWARE & SOFTWARE
12" touch-screen - NO TEXT System, patented by Maggi
USB and Ethernet ports for file uploading, on-line assistance and system upgrades
System based on Linux Kernel
Up to 1.000 working programs storable
Specifications
| Maximum panel dimension X-Y-Z mm | 3000 x 800 x 50 mm |
|---|---|
| Minimum panel dimension X-Y-Z mm | 300 x 100 x 10 mm |
| Maximum panel weight | 25 Kg |
| Max. axis speed (full and no load) | 25 m/min - 40 m/min |
| Double horizontal spindles (X axis) | n.2 (TH1, TH2) |
| Double horizontal spindles (Y axis) | n.1 (TH3) |
| Vertical spindles (Z axis) | n.9 (4X-5Y) |
| Spindle inter-axis | 32 mm |
| Spindle speed | 3200 RPM |
| Integrated blade unit, fixed position (X axis) | n.1 |
| Blade diameter | 100 mm |
| Blade thickness | 3.2 mm |
| Blade speed | 5700 RPM |
| Motor power (spindles and blade) | 2.2 kW |
| Total power (full-optional) | 3 kW ( 8 A) |
| Dust-collection nozzle diam. | 160 mm |
| Air pressure | 6 bar |
| Air consumption | Q. = 0.75 m3/h |
| Overall dimensions - net weight | 1830 x 2000 x 1800 mm. - 975 Kg |
| Package dimensions (pallet) - gross weight | 2090 x 2060 x 1900 mm - 1.060 Kg |
