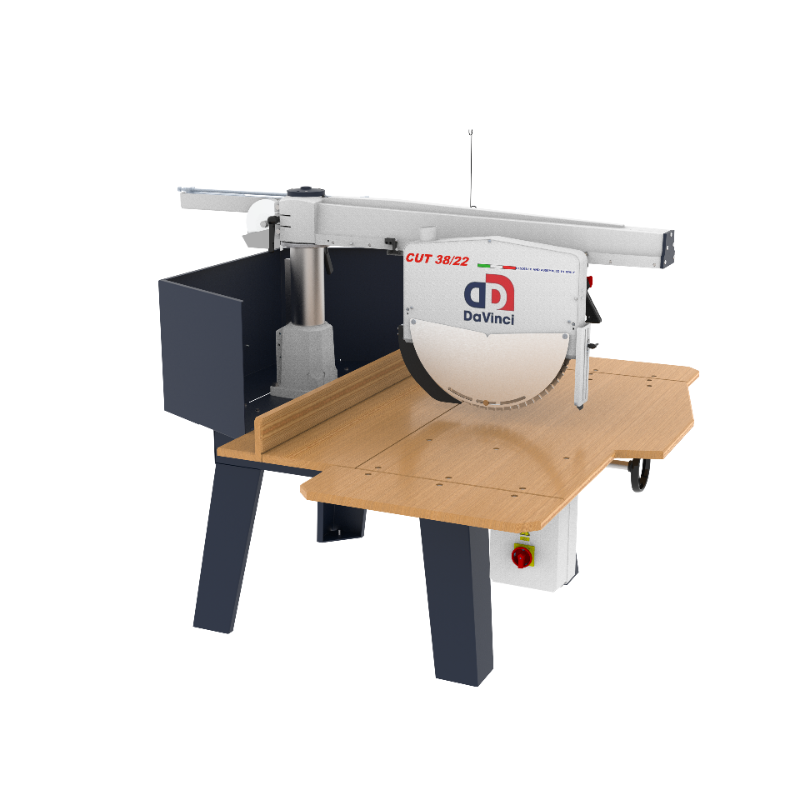

DA VINCI CUT 38 / 22 Radial Arm Saw Front view

DA VINCI CUT 38 / 22 Radial Arm Saw

by DA VINCI
£6,699.99

Notify me when back in stock

FREE SHIPPING AND 12 MONTH MANUFACTURERS WARRANTY! No Refunds due to manufacturer assembling upon order.

Features

Automatic return-spring

Self-braking motor

Electrical system equipped with motor-overload protection and emergency button

Sound-insulated blade guard made of steel

Front-lifting handle to adjust the cutting height

Well-dimensioned rear hood, ready to be connected to a dust collector

MDF working bench

Package: recyclable cardboard box

Blade not included

Lockable switch

Specifications

Max. cutting height 200 mm
Max. cutting width 850 x 20 h mm
Min. cutting width 680 x 200 h mm
Height of blade at 45° from the table 0 - 135 mm
Min. and Max. cutting width at 45° (right) 470 - 590 mm
Min. and Max. cutting width at 45° (left) 280 - 400 mm
Height of blade from working bench 0 - 40 mm
Blade diameter 565 mm
Blade bore diameter 30 mm
Motor HP / KW 7.5/5.5 RPM 2800
Working bench dimensions 1970 x 1285 x 25 mm
Diameter of dust collection nozzle on blade guard 60 mm
Diameter of dust collection nozzle on rear hood 100 mm ( n.2)
Overall dimensions of full-assembled machine and net weight 1970 x 1740 x h 1720 mm / 362 Kg
Dimensions of packed machine and gross weight 1500 x 1000 x h 1600 mm - 432 Kg
Dimensions and gross weight - HALF ASSEMBLED MACHINE 1700 x 1250 x h 1191 mm / 432 Kg



Buy online today!
