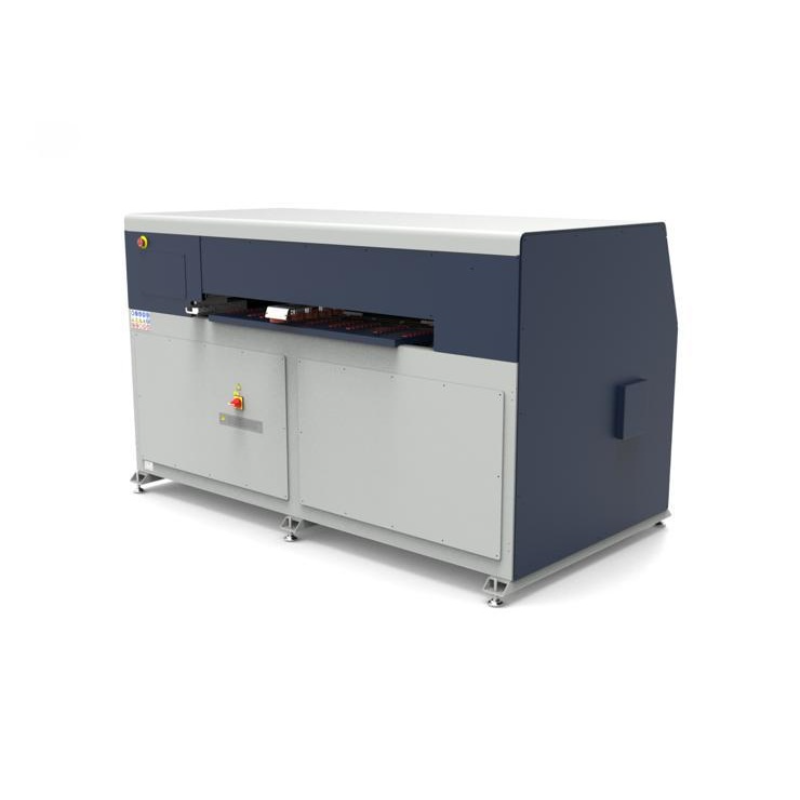

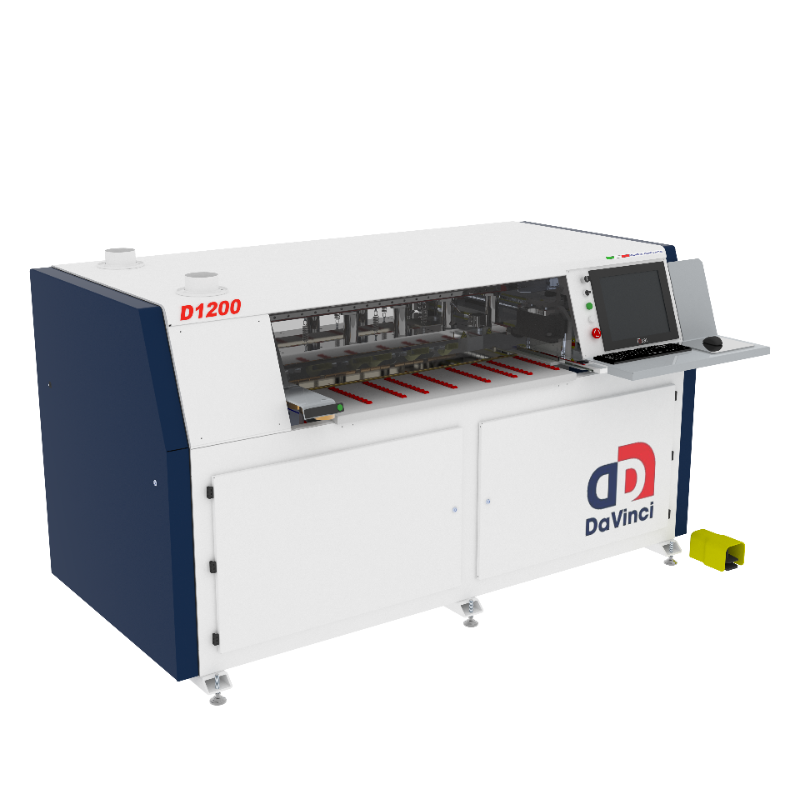

DA VINCI D 1200 CNC Boring System
FREE SHIPPING AND 12 MONTH MANUFACTURERS WARRANTY! No Refunds due to manufacturer assembling upon order.
Features
HEAD UNIT
Independent spindles, 32 mm inter-axis
N.7 vertical spindles ( 4 X - 3 Y)
N.1 double horizontal-spindle (TH1) for front and back drilling ( x axis)
PANEL HANDLING
High-precision manual side aligner, sliding on ball bearings guide rails
Panel-edge detection with laser sensor for perfect panel joints
Well-dimensioned front and rear support tables with rollers
Teleservice software
Powerful dust-collection system and automatic blowers for effective cleaning of the boring head unit
Automatic lubrication of the axis-unique in its category!
Selectable operating mode : Working in a cycle or back to the operator
Package: wrapped on a wooden pallet (2630x1560x157 mm – 74 Kg)
SOFTWARE
- OSAI OPEN LIGHT CNC System for job programming and remote connection
- PEGASUS PANEL Design software
- Easy programming, intuitive icon-based interface, step-by-step data entry, parametric system, with work list management and machining macros
-Compliant with Industry 4.0 requirements
-Remote assistance software
HARDWARE
- Industrial PC
- Operating system: Win10 IoT Enterprise 64bit
- Mass storage: 128 GB on mSATA SSD
- Program memory: 128 GB on mSATA SSD
- Processor ( CPU) : Intel Celeron J1900
- RAM : 4 GB
- Industrial 17” color LED monitor, format 4:3, resolution 1280 x 1024, front protection degree IP 65
-USB and Ethernet Ports for file uploading, on-line assistance and software updates
Specifications
| Maximum panel dimension X-Y-Z mm | ∞ x 1200 x 60 mm |
|---|---|
| Minimum panel dimension X-Y-Z mm | 300 x 75 x 8 mm |
| Maximum panel weight | 70 Kg |
| Max. axis speed (full and no load) | 25 m/min -70 m/min |
| Double horizontal spindles (X axis) | n.2 (TH1, TH2) |
| Double horizontal spindles (Y axis) | n.2 (TH3, TH4 ) |
| Vertical spindles (Z axis) | n.12 (7X-5Y) |
| Spindle inter-axis | 32 mm |
| Spindle speed | 3200 RPM |
| Integrated blade unit, fixed position (X axis) | n.1 |
| Blade diameter | 120 mm |
| Blade thickness | 4,3 mm |
| Blade speed | 4000 RPM |
| Motor power (spindles and blade) | 2,2 kW |
| Electro spindle manual tool change (power - router holder type - collet chuck type - RPM) | 3,6 kW, HSK 32, ER 25, 18.000 RPM |
| Electro spindle manual tool change (power - collet chuck type - RPM) | 3,6 kW, ER 25, 18.000 RPM |
| Electro spindle manual tool change (power - collet chuck type - RPM) | 4,5 kW, ER 32, 18.000 RPM |
| Total power (full-optional) | 10 kVA ( 23 A ) |
| Dust-collection nozzle diam. | n.2 x 120 mm n.1 x 80 mm |
| Air pressure | 6 bar |
| Air consumption | Q. = 0.75 m3/h |
| Overall dimensions - net weight | 2660 x 1560 x 1450 mm - 1725 Kg |
| Package dimensions (pallet) - gross weight | 2650 x 1570 x 1680 mm - 1810 Kg |
