SIP Professional Tilting Spindle Moulder

by SIP
£2,169.99

Notify me when back in stock

FREE SHIPPING AND EASY RETURNS! (Read our "Easy Returns" policy for more info)

The SIP Professional Tilting Spindle Moulder offers powerful performance in shaping, profiling, and machining, accommodating rebates, grooves, and much more on wood edges, with tilting angles providing increased versatility ideal for all demanding tasks.

Features

Powerful induction motor for heavy-duty performance

Versatile -10° to +30° spindle tilting shaft angle

Comfortable 900mm unit height with large 710mm x 640mm work surface designed from high-quality and durable cast iron

Table is predrilled for power feed unit acceptance

4 powerful working speeds to accommodate all demands

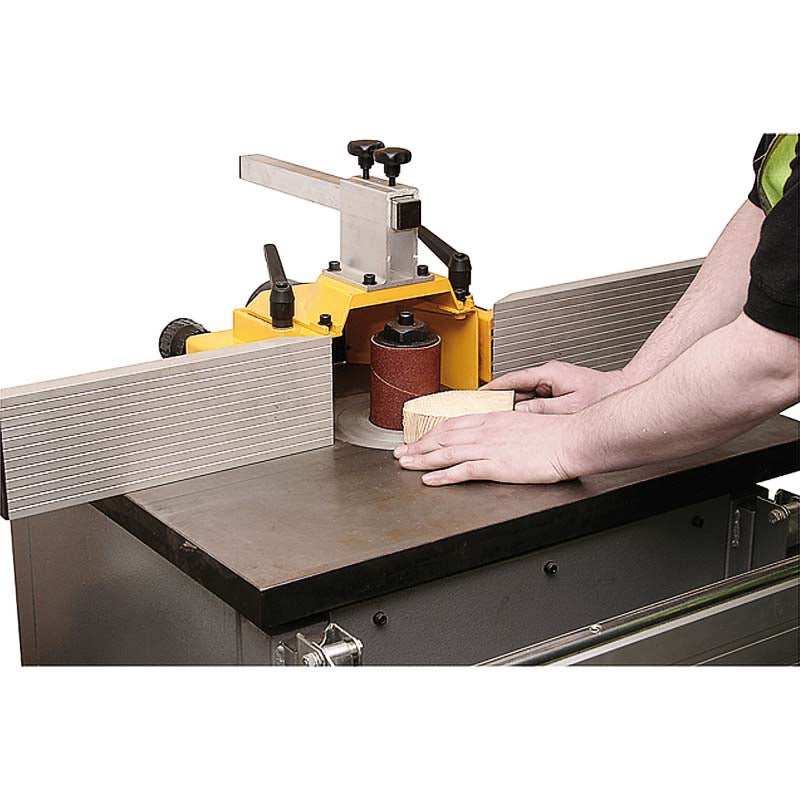

Low speed for use with supplied sanding bobbin

Integrated NVR switch for added safety

Manufactures 2 - Year Standard Silver Warranty

Specifications

Input Supply: 230v (16A)
Motor Power: 2.8kW (3.75hp)

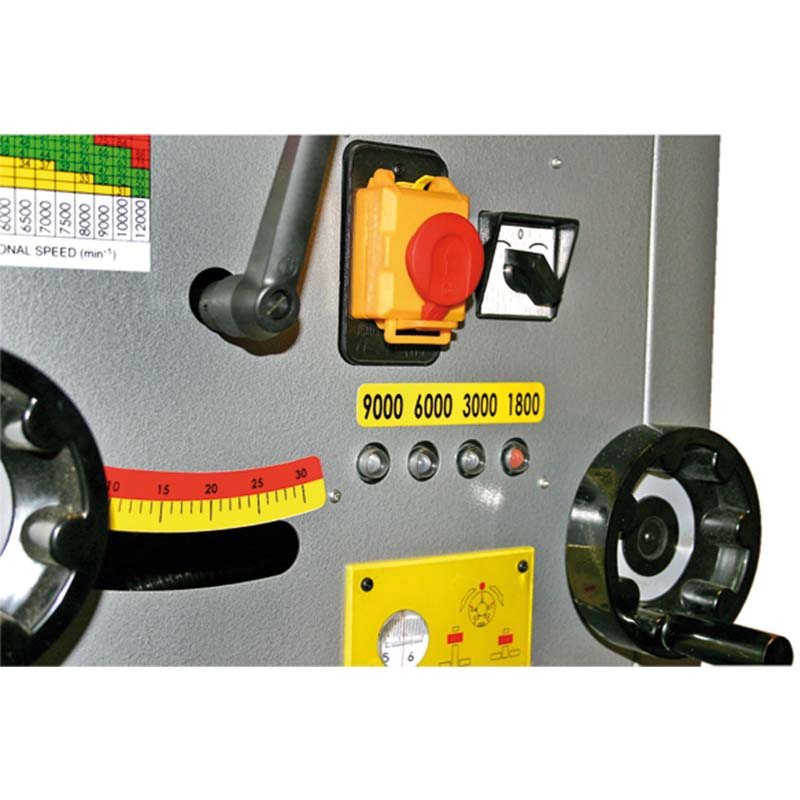

Spindle Speeds: 4 speeds;
1800rpm
3000rpm
6000rpm
9000rpm
Spindle Diameter: Ø 30mm
Spindle Travel: 100mm
Max. Tool Diameter: Ø 200mm
Table Opening: 200mm
Table Size: 710mm x 640mm
Spindle Tilting: -10° - +30°
Net Weight: 170.00kg
Gross Weight: 188.00kg
Product Dimensions:
Packaged Dimensions: 700(H) x 760(W) x 690mm(D)



Buy online today!

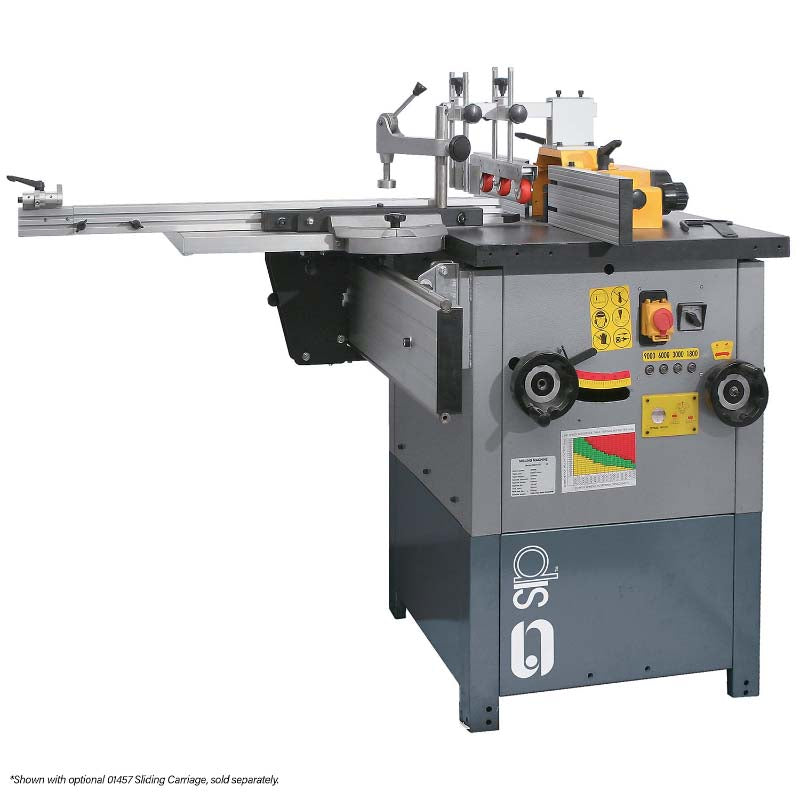

Machine shown with optional SIP Sliding Carriage
